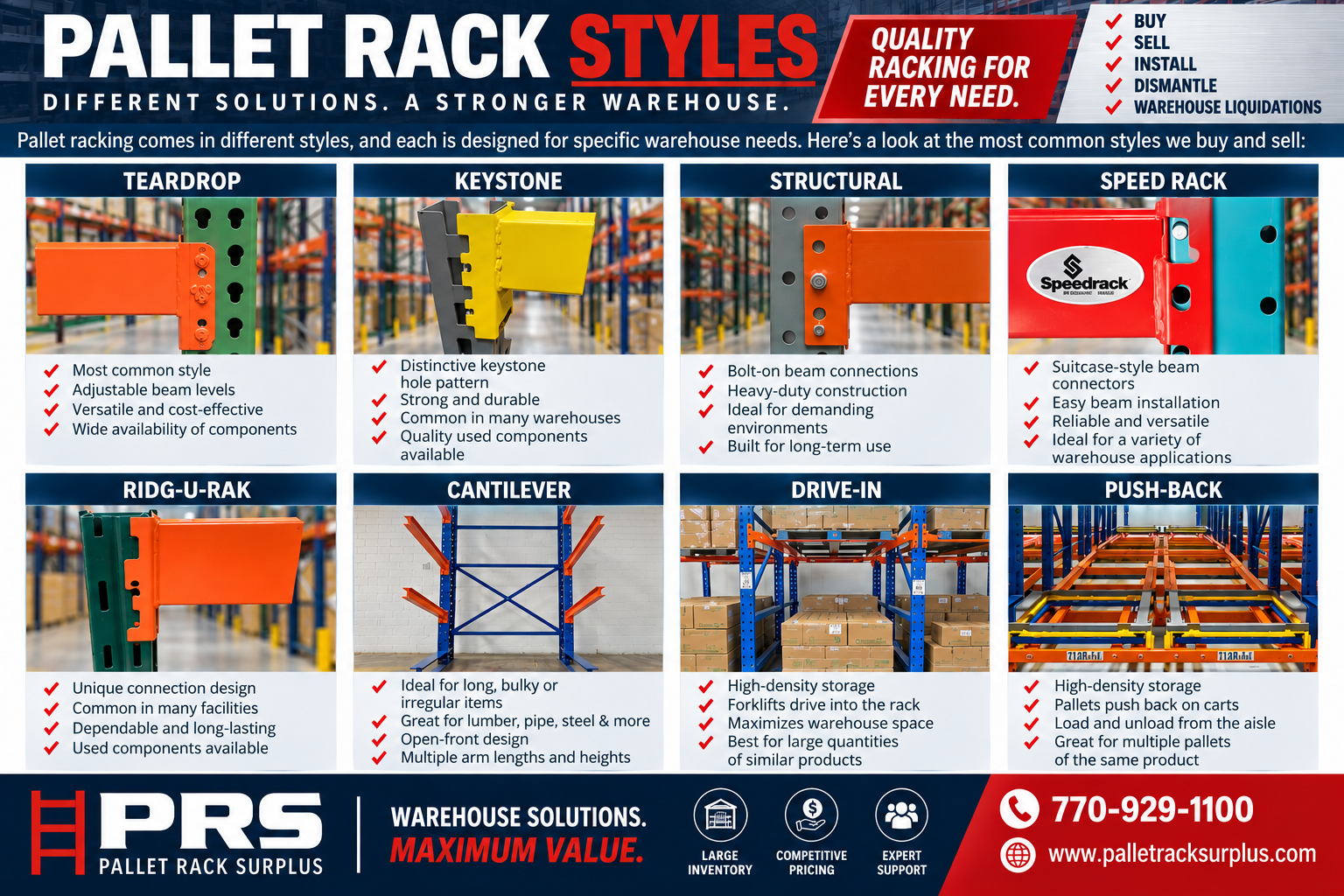

Pallet Rack Styles Explained: Choosing the Right System for Your Warehouse

Pallet racking may look fairly similar at first glance, but not all pallet rack systems are the same. Different styles use different connections, components, and designs—and choosing the correct system can have a major impact on how efficiently your warehouse operates.

Whether you're outfitting a new warehouse, expanding an existing system, or trying to identify the pallet racking already in your facility, understanding the different styles of rack is an important first step.

At Pallet Rack Surplus, we work with a wide variety of new and used pallet racking. Here are some of the most common styles you may encounter and what makes each one different.

Teardrop Pallet Racking

Teardrop pallet racking is one of the most recognizable and commonly used styles of selective pallet rack.

Its name comes from the teardrop-shaped holes found along the face of the upright columns. The horizontal beams connect to these openings using specially designed connectors, allowing the beams to be installed and repositioned relatively easily.

One of the biggest advantages of teardrop racking is its versatility. Because it is so widely used, businesses frequently choose it when they want a straightforward selective rack system that provides direct access to individual pallet positions.

Teardrop rack is commonly found in distribution centers, manufacturing facilities, storage warehouses and many other industrial applications.

Common advantages include:

• Easy access to individual pallet positions
• Adjustable beam levels
• Straightforward installation and reconfiguration
• Wide availability of components
• Suitable for many different warehouse applications

For businesses that expect their storage requirements to change over time, the adjustability of teardrop racking can be particularly valuable.

Keystone Pallet Racking

Keystone pallet racking is another style of selective pallet rack, but its upright connection pattern differs from teardrop rack.

The openings in the upright columns have a distinctive keystone-style shape. Beams designed for this connection style attach directly to these openings.

This distinction is important because pallet rack components that appear similar are not automatically interchangeable. When expanding an existing system or replacing components, correctly identifying the rack style is essential.

Keystone racking can still be found in many warehouses, making quality used components valuable for companies that want to expand an existing system without replacing the entire installation.

Speed Rack Pallet Racking

Speed Rack is easily recognized once you know what to look for.

The system uses distinctive suitcase-style handles on the beam connectors, which attach the beams to the uprights. This connection design separates Speed Rack from many other pallet rack styles.

Like other selective rack systems, Speed Rack allows warehouse operators to organize palletized inventory while maintaining direct access to stored products.

Businesses with an existing Speed Rack installation may specifically seek matching uprights and beams when they need to add sections or replace components.

This is one reason identifying your existing pallet rack before purchasing additional material is so important.

Ridg-U-Rak Pallet Racking

Ridg-U-Rak is another pallet rack system commonly encountered in warehouses and industrial facilities.

Although it performs the same fundamental job of supporting palletized inventory, its connection design and components should be properly identified before adding replacement beams, uprights or other structural components.

Existing Ridg-U-Rak systems can often remain useful for many years when properly maintained, making compatible used components an attractive option when businesses need to expand or modify their warehouse storage.

If you're unsure whether the rack in your facility is Ridg-U-Rak or another style, photographs of the upright openings and beam connectors can often help an experienced rack supplier identify the system.

Structural Pallet Racking

Structural pallet racking differs significantly from many roll-formed pallet rack systems.

Rather than relying on the typical hook-style connections found on many selective racks, structural rack commonly uses heavy structural steel components with bolt-on beam connections.

Structural pallet rack is often selected for demanding warehouse environments where durability and resistance to impact are important considerations.

Because of its construction, structural racking may be appropriate for facilities storing heavier products or operating in environments where rack systems experience substantial daily use.

Potential advantages can include:

• Heavy-duty construction
• Strong beam-to-upright connections
• Suitability for demanding warehouse environments
• Ability to accommodate substantial storage requirements
• Long service life when properly designed, installed and maintained

The appropriate rack system and capacity should always be determined based on the actual loads and conditions of the individual warehouse.

Cantilever Racking

Not everything stored in a warehouse fits neatly onto a pallet.

That's where cantilever racking comes in.

Instead of traditional front uprights and horizontal pallet rack beams, cantilever systems use vertical columns with arms extending outward to support the material.

The open-front design makes cantilever rack particularly useful for storing long, bulky or irregularly shaped products.

Common applications include:

• Lumber
• Pipe
• Steel
• Tubing
• Furniture
• Building materials
• Long manufactured products

Cantilever systems can be configured with different column heights, arm lengths and storage levels depending on the products being stored.

For businesses handling long materials, cantilever rack can provide a much more organized alternative to stacking inventory on the warehouse floor.

Drive-In Pallet Racking

Drive-in racking takes a different approach to warehouse storage.

Instead of providing an individual aisle for every row of pallet positions, drive-in systems allow forklifts to enter the rack structure itself to place and retrieve pallets.

This can significantly increase storage density by reducing the amount of warehouse floor space devoted to aisles.

Drive-in rack can be useful for businesses storing large quantities of similar products because multiple pallets can be stored within deep storage lanes.

However, increased density comes with a tradeoff: individual pallets are not as directly accessible as they are in a conventional selective rack system.

For that reason, the best system depends heavily on the type of inventory being stored and how frequently individual pallets need to be accessed.

Push-Back Pallet Racking

Push-back racking is another high-density storage option.

In a push-back system, pallets are stored multiple positions deep on carts or other engineered components. As a new pallet is loaded, it pushes previously loaded pallets farther into the storage lane.

When a pallet is removed, the remaining pallets move toward the front position.

Push-back systems can provide significantly greater storage density than standard selective rack while allowing loading and unloading from the aisle.

These systems can be useful when warehouse space is valuable and multiple pallets of the same product need to be stored together.

Selective vs. High-Density Pallet Racking

One of the most important decisions when designing warehouse storage is determining whether accessibility or storage density is the greater priority.

Traditional selective systems—including many Teardrop, Keystone, Speed Rack and Ridg-U-Rak configurations—are designed to provide relatively easy access to individual pallet positions.

High-density systems such as drive-in and push-back racking sacrifice some individual pallet accessibility in exchange for fitting more pallet positions into a given area.

Neither approach is automatically better.

The right choice depends on factors such as:

• Number of SKUs
• Quantity of each product
• Inventory turnover
• Pallet dimensions and weights
• Forklift equipment
• Available warehouse space
• Ceiling height
• Required aisle widths
• Receiving and shipping volume
• Future expansion plans

Why Pallet Rack Compatibility Matters

One of the most important things to understand about pallet racking is that similar-looking components are not necessarily compatible.

Two beams may be the same length and appear nearly identical while using completely different connections.

The same applies to uprights.

Trying to determine compatibility based only on general appearance or dimensions can lead to purchasing the wrong material—and rack components should never be modified or forced together simply because they appear close enough to fit.

When purchasing components for an existing system, identify the manufacturer and rack style whenever possible.

Clear photographs can also be extremely helpful. Pictures of the upright hole pattern, beam connector and overall rack section can often provide the information needed to begin identifying a system.

Don't Forget the Other Components

Uprights and beams may form the basic structure of a pallet rack system, but they aren't the only components involved in creating an effective warehouse storage solution.

Depending on the system and application, additional components can include:

• Wire decking
• Row spacers
• Post protectors
• End-of-aisle guards
• Safety netting
• Anchors
• Other application-specific accessories

Every warehouse is different, which is why pallet racking should be configured around the products, equipment and operating conditions of the facility rather than approached as a one-size-fits-all solution.

New Warehouse or Existing Rack—Start With the Right System

If you're starting with an empty warehouse, you have an opportunity to select a rack system based on your inventory, building dimensions, material-handling equipment and future storage requirements.

If you're adding to an existing warehouse, the process is different.

Before purchasing additional material, determine what style of pallet racking you already have. Matching the correct components can save considerable time and help avoid purchasing material that won't work with your existing system.

Not sure what type of pallet rack you have?

Take clear photographs of the rack, including close-up pictures of the upright holes and beam connections. Those details can make identification much easier.
